L2
| Specification | L2 |
|---|---|
| Model Type | L2 |
| Appearance Size (mm) | 28.8 * 12.5 * 16 |
| Contact Form | 1A, 1B |
| Max. Switching Current | 16A |
| Coil Voltage | 5~48 VDC |
| Terminal Type | PCB |
Home / Products / IOEC Relays / Latching Relays : IOEC
IOEC Latching Relays – Authorised Dealer in Pune
MotorsTransformersLightingSignal switchingTemperature controlAlarm systems
Energy-Saving Bistable Relays That Hold Their State Without Power
At Kura Electronics, we supply one of the best quality latching relays and other associated products as required by power and energy industries. Our primary expertise lies in the field of design. We have a strong reputation for excelling in the supply of relays like telecommunication relays,general control relays, sockets and accessories. Within our organization, we are committed to staying at the forefront of technological advancements as far as supply of unique products is concerned. We maintain a full fledged quality assurance team and system to ensure that the high quality of every component is maintained.
Latching relays are a specialized type of electrical relay that can maintain their position without continuous power. Unlike standard relays that require a constant coil current to remain energized, latching relays use a unique mechanism to latch into either an ON or OFF state until they receive another pulse of electrical energy to change their state. Latching relays utilize a mechanical mechanism to maintain their state after being switched. They have two stable states namely ON and OFF and can be switched between these states with a pulse of electrical current. These relays are bistable means, they have two stable positions. They do not require a continuous power supply to maintain their state which can lead to energy savings in certain applications.

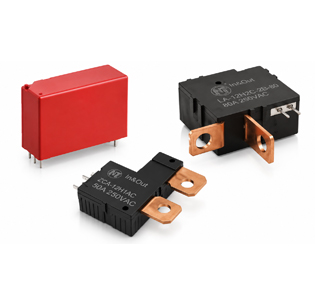

IOEC Latching Relay Models – L2, L3, L4, LA, LA6 & LB
15 models in this range. Every datasheet opens as a PDF.
L3
| Specification | L3 |
|---|---|
| Model Type | L3 |
| Appearance Size (mm) | 24.0 * 10.0 * 15.8 |
| Contact Form | 1A, 1B |
| Max. Switching Current | 20A |
| Coil Voltage | DC: 3~24 |
| Terminal Type | PCB |
L4
| Specification | L4 |
|---|---|
| Model Type | L4 |
| Appearance Size (mm) | 39 * 15 * 30.2 |
| Contact Form | 1A, 1B, 1C |
| Max. Switching Current | 50A |
| Coil Voltage | DC: 5~24 |
| Terminal Type | PCB |
LA
| Specification | LA |
|---|---|
| Model Type | LA |
| Appearance Size (mm) | 36.6 * 34 * 17.8 |
| Contact Form | 1A, 1B |
| Max. Switching Current | 80A |
| Coil Voltage | 6~24 VDC |
| Terminal Type | PCB |
LA6
| Specification | LA6 |
|---|---|
| Model Type | LA6 |
| Appearance Size (mm) | 38 * 30 * 16.5 |
| Contact Form | 1A, 1B |
| Max. Switching Current | 90A |
| Coil Voltage | DC: 5~48 |
| Terminal Type | PCB Plug-In |
LB
| Specification | LB |
|---|---|
| Model Type | LB |
| Appearance Size (mm) | 58.0 * 40.0 * 20.8 |
| Contact Form | 1A, 1B |
| Max. Switching Current | 100A |
| Coil Voltage | DC: 6~24 |
| Terminal Type | QC Screw Fasten |
Features of IOEC Latching Relays
-
High Current Handlingy : These relays are engineered to handle substantial electrical currents, ensuring the efficient and reliable distribution of power in industrial settings.
-
Robust Construction : IOEC relays are built to withstand the rigors of industrial environments, designed with durability and longevity in mind.
-
Precision Control : They offer precise control over electrical circuits, enabling the safe and efficient operation of machinery and industrial processes.
-
Low Contact Resistance : With low contact resistance, these relays minimize power loss, ensuring energy efficiency and reducing heat generation.
-
Diverse Applications : IOEC Industrial Relays find application in a wide range of industrial sectors, including manufacturing, automation, energy and more.
-
Custom Solutions : IOEC specializes in tailoring relay solutions to meet specific industrial needs, providing the perfect fit for unique requirements.
Applications of IOEC Latching Relays
Manufacturing
They play a vital role in controlling and automating industrial processes, ensuring the seamless operation of production lines.
Automation
IOEC relays are integrated into automation systems, managing the control and flow of power to various machines and devices.
Energy Sector
They are used in power generation and transmission, contributing to the reliable management of electrical grids and substations.
Transportation
Within the transportation sector, these relays are employed in rail systems, ships and other heavy machinery to ensure safe and efficient operation.
FAQs
IOEC Latching Relays – FAQs
01What is a latching relay?
A latching relay is a bistable relay that switches with a short pulse and stays ON or OFF without continuous power.
02How does a latching relay save energy?
It needs power only while switching, not to hold its state, so it uses less energy and produces less heat.
03Where are latching relays used?
They are used in energy meters, lighting control, battery-powered devices and power and energy systems.
04Which IOEC latching relay models do you stock?
We stock the IOEC L2, L3, L4, LA, LA6 and LB latching relays. Datasheets are on each product card.
05Where can I buy IOEC latching relays in Pune?
Kura Electronics is an authorised IOEC dealer in Shukrawar Peth, Pune, and supplies latching relays across India.
Need a latching relay price?
Send the model, coil voltage and quantity, and we will reply with price and availability.
