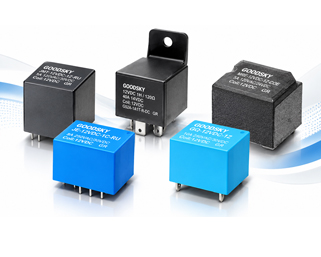

Goodsky Automotive Relays for Cars, Trucks & Two-Wheelers

Kura Electronics & Electricals supplies genuine Goodsky automotive relays – ARW, SAM, CAR, GRL, JM, RWM and ZEM series – for lights, horns, fans, fuel pumps and vehicle control circuits.

Kura Electronics & Electricals is an authorised Goodsky dealer in Pune, India, supplying Goodsky Automotive Relays for automotive electrical and electronic applications. These relays are used for reliable switching and control of electrical circuits in vehicles and automotive systems.

What Are Goodsky Automotive Relays?

Goodsky Automotive Relays are suitable for applications requiring dependable switching, electrical isolation and efficient control of vehicle-related electrical loads. Kura Electronics & Electricals supplies relay solutions based on the required specifications, configuration and application requirements.

We are Supplier and Exporter of our product range. Our setup is situated in Pune, Maharashtra, India and majorly we serve our customers from all over India including metro cities like Pune, Mumbai, Bangalore, Chennai, Delhi, Hyderabad.
Download the datasheets below, or send your part number for a quick quote with supply across India.

Goodsky Automotive Relay Models & Specifications

Goodsky ARW Relay

Load Type	ARW (DM)	ARW (DB)	ARW (D)
Rated Load (Resistive)	5A 120VAC 15A 12VDC	5A 120VAC 15A 12VDC	5A 120VAC 15A 12VDC
Rated Carrying Current	15A	15A	15A
Max. Allowable Voltage	AC 120V DC 28V	AC 120V DC 28V	AC 120V DC 28V
Max. Allowable Current	15A	15A	15A
Max. Allowable Power Force	600VA 180W	600VA 180W	600VA 180W
Contact Material	Ag Alloy	Ag Alloy	Ag Alloy
Contact Form	SPST	SPST	SPDT

Main Feature

Single contact and double contacts type offer switching capacity by 15A in small size for exclusive automobile control relay switching box use
standard and European Specification are available to comply with various electrical specification requirements.
Simple magnetic circuit to meet mass production for low cost offer. Standard type is open type without dust cover. If dust cover is required, suitable cased relay can be prepared
Bubble Test conforming to JIS standard will be conducted on the SX type of Relay for checking the Relay sealing.
Operating ambient temperature range covers from -25^oC to 80^oC at no current on Relay' s contacts.

Application

Car Control Switching Box (Alarm System, Automatic Door Locking System) Car Flashers Etc

Datasheet Enquire

Goodsky SAM Relay

Load Type	SAM-1P (DM/DB)	SAM-1P (D)	SAM-2P (DM/DB)	SAM-2P (D)
Rated Load (Resistive)	N.O.: 10A 24VDC N.C.: 7A 24VDC	N.O.: 10A 24VDC N.C.: 7A 24VDC	N.O.: 15A 15VDC N.C.: 10A 15VDC	N.O.: 15A 15VDC N.C.: 10A 15VDC
Rated Carrying Current	10A	10A	15A	15A
Max. Allowable Voltage	DC 30V	DC 30V	DC 30V	DC 30V
Max. Allowable Current	10A	10A	15A	15A
Max. Allowable Power Force	240W	240W	240W	240W
Contact Material	Ag Alloy	Ag Alloy	Ag Alloy	Ag Alloy
Contact Form	SPST	SPDT	DPST	DPDT

Main Feature

Miniature size 12.1x17.2x16.2mm on SAM-1P for smaller occupying space.
Easy P.C. Board design available as the location of contact terminal separated from each contact
Distinctive twin relay structure on SAM-2P providing high performance for the use of automotive..
both washable and flux proofed types available.
Comply with RoHS, REACH and ELV regulations

Application

Lighting Control, Central Door Lock Control, Power Window Control, Power Door Control, Sunroof Contro

Datasheet Enquire

Goodsky CAR Relay

Load Type	CAR (DM)	CAR (DB)	CAR (D)
Rated Load (Resistive)	40A 12VDC	40A 12VDC	NO: 40A 12VDC NC: 30A 12VDC
Rated Carrying Current	NO: 40A	NC: 40A	NO: 40A NC: 30A
Max. Allowable Voltage	DC 60V	DC 60V	DC 60V
Max. Allowable Current	40A	40A	NO: 40A NC: 30A
Max. Allowable Power Force	480W	480W	NO: 480W NC: 360W
Contact Material	Ag Alloy	Ag Alloy	Ag Alloy
Contact Form	SPST	SPST	SPDT

Load Type	CAR (LM)	CAR (LB)	CAR (L)
Rated Load (Resistive)	30A 12VDC	30A 12VDC	30A 12VDC
Rated Carrying Current	30A	30A	30A
Max. Allowable Voltage	DC 60V	DC 60V	DC 60V
Max. Allowable Current	30A	30A	30A
Max. Allowable Power Force	360W	360W	360W
Contact Material	Ag Alloy	Ag Alloy	Ag Alloy
Contact Form	SPST	SPST	SPDT

Main Feature

European and American footprints available offer different market selections.
Washable type, flux-proofed type, unclosed type available for different customer's requirement.
E130 material applied to strengthen the contact in order to carry the high current load.
Comply with RoHS, REACH and ELV regulations

Application

Seat Adjustment, Audio System, Air Conditioning Control, Fuel Pump Control, Lighting Control, Central Door Lock Control, Power Window Control, Sunroof Contro

Datasheet Enquire

Goodsky GRL Relay

Load Type	GRL (DM/DB)	GRL (D)	GRL-2P (DM)
Rated Load (Resistive)	N.O.: 40A 12VDC N.C.: 30A 12VDC	N.O.: 40A 12VDC N.C.: 30A 12VDC	40A(20A×2) 12VDC
Rated Carrying Current	40A	40A	40A(20A×2)
Max. Allowable Voltage	30VDC	30VDC	30VDC
Max. Allowable Current	40A	40A	40A(20A×2)
Max. Allowable Power Force	480W	480W	240W
Contact Material	Ag Alloy	Ag Alloy	Ag Alloy
Contact Form	SPST	SPDT	DPST

Main Feature

switching use relay at ambient temperature of 80^oC.
Compatible Plug-in terminal available
Metal or plastic bracket selection
Standard type contact form SPDT and DPST available for custome's selection
Operating ambient temperature range covers from -40^o>C to +125^oC.
Comply with RoHS, REACH and ELV regulations

Application

Engine Cooling Fan Control, Air-Conditioning Control, Fuel Pump control, Lighting Control

Datasheet Enquire

Goodsky JM Relay

Load Type	JM-1P (DM/LM)	JM-1P (D/L)	JM-2P (DM/LM)	JM-2P (D/L)
Rated Load (Resistive)	10A 14VDC	10A 14VDC	10A 14VDC	10A 14VDC
Rated Load (Motor) at 0.5s ON, 9.5s OFF	20A 14VDC	20A 14VDC	20A 14VDC	20A 14VDC
Rated Carrying Current	10A	10A	10A	10A
Max. Allowable Voltage	60VDC	60VDC	60VDC	60VDC
Max. Allowable Current	25A	25A	25A	25A
Max. Allowable Power Force	280W	280W	280W	280W
Contact Material	Ag Alloy	Ag Alloy	Ag Alloy	Ag Alloy
Contact Form	SPST	SPDT	DPST	DPDT

Main Feature

Smaller size with the capability of 25A inrush current.
Applicable for automotive electrical systems.
Distinctive twin relay structure on JM-2 providing high performance for the use of automotive.
Resistance to environment with shock and vibration.
Comply with RoHS, REACH and ELV regulations

Application

Power Window Control, Auto Door Lock Control, Power Mirror Control, Seat Adjustment, Wiper Control

Datasheet Enquire

Goodsky RWM Relay

Load Type	RWM (DM/DB)	RWM (D)
Rated Load (Resistive)	15A 15VDC	15A 15VDC
Rated Carrying Current	15A	15A
Max. Allowable Voltage	DC 30V	DC 30V
Max. Allowable Current	15A	15A
Max. Allowable Power Force	225W	225W
Contact Material	Ag Alloy	Ag Alloy
Contact Form	SPST	SPDT

Main Feature

Slim type with 15A rated load.
Suitable plastic and metal to high temperature and various chemical solutions.
Highly adapt to harsh environment with shock and vibration.
Wash tight and flux proofed type available.
Comply with RoHS and REACH regulations

Application

Power Window Control, Sunroof Control, Power Mirror Control, Door Lock Control

Datasheet Enquire

Goodsky ZEM Relay

Load Type	ZEM (DM/LM)	ZEM (D/L)
Rated Load (Resistive)	30A 12VDC	NO: 30A 12VDC
	15A 24VDC	15A 24VDC
	-	NC: 20A 12VDC
	-	10A 24VDC
Rated Carrying Current	30A	30A
Max. Allowable Voltage	DC 30V	DC 30V
Max. Allowable Current	30A	30A
Max. Allowable Power Force	360W	360W
Contact Material	Ag Alloy	Ag Alloy
Contact Form	SPST	SPDT

Main Feature

Designed for 30A switching load to comply with automotive system use.
Compatible plug-in terminal available.
Standard type contact form SPDT and SPST are available for customers selection
Operating ambient temperature range from -40^oC to +125^oC
Comply with RoHS, REACH and ELV regulations

Application

Wiper Control, Fuel Pump Control, Horn Control, Lighting Control, Electronic Sunroof Control

Datasheet Enquire

Key Features of Goodsky Automotive Relays

Key Features

Reliable electrical switching

Suitable for automotive applications

Compact relay construction

Stable switching performance

Suitable for vehicle electrical systems

Electrical isolation between control and load circuits

Applications of Goodsky Automotive Relays

Automotive electrical systems

Automotive control circuits

Horn and accessory circuits

Vehicle power distribution

Safety and auxiliary circuits

Automotive OEM systems

FAQs

Goodsky Automotive Relays – FAQs

01What current ratings do Goodsky automotive relays have?

From 10A to 40A: SAM and JM 10A, ARW and RWM 15A, ZEM 30A, and CAR and GRL up to 40A.

02Which relay is best for cooling fans and fuel pumps?

Use the 40A CAR or GRL relay, or the 30A ZEM relay, for cooling fans, fuel pumps, horns and AC control.

03Which relay is used for power windows and door locks?

The compact JM, SAM and RWM relays suit power windows, door locks, power mirrors and sunroof control.

04Can Goodsky automotive relays work in high temperatures?

Yes. The GRL and ZEM relays operate from -40°C to +125°C, and most series comply with RoHS, REACH and ELV.

05Where can I buy Goodsky automotive relays in Pune?

From Kura Electronics & Electricals, an authorised Goodsky dealer in Shukrawar Peth, Pune, with supply across India.

Need an automotive relay price?

Send the model, coil voltage and quantity, and we will reply with price and availability.
