Goodsky Telecommunication Relays – Authorised Dealer in Pune

TelecomInstrumentationSignal switching
Request a quote

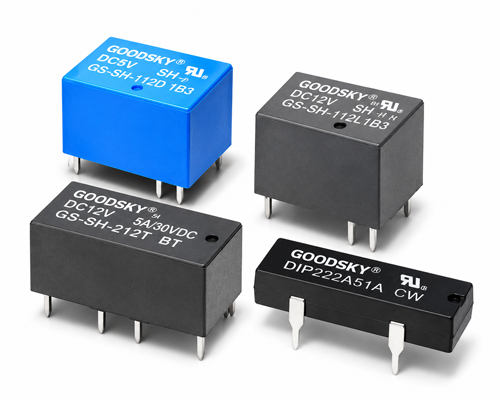

Telecommunication Relays-Goodsky

Kura Electronics & Electricals is an authorised dealer of Goodsky Telecommunication Relays in Pune, India, offering reliable relay solutions for telecommunication, signal switching and electronic control applications. Goodsky telecommunication relays are designed for dependable switching performance, compact installation and stable operation in various communication and electronic systems.

What Are Goodsky Telecommunication Relays?

Goodsky Telecommunication Relays are used for switching and controlling electrical signals in communication and electronic equipment. These relays are suitable for applications where reliable contact switching, electrical isolation and consistent signal control are required.

Goodsky Telecommunication Relays are designed for reliable signal switching and communication applications. These relays offer excellent switching performance, compact construction, stable operation, and long service life. They are suitable for telecommunication equipment, signal processing systems, control circuits, electronic devices, and other applications requiring dependable low-level signal switching.

Goodsky Telecom Relay Models & Specifications

Telecommunication Relays : Goodsky

Goodsky UA Relay

Load Type UA (DM/DB) UA (D)
Rated Load (Resistive) 3A 120VAC
3A 24VDC 		3A 120VAC
3A 24VDC
Rated Carrying Current 3A 3A
Max. Allowable Voltage AC 120V
DC 60V 		AC 120V
DC 60V
Max. Allowable Current 3A 3A
Max. Allowable Power Force 360VA
72W 		360VA
72W
Min. Switching Load DC 5V, 10mA DC 5V, 10mA
Contact Material Ag Alloy Ag Alloy
Contact Form SPST SPDT

Main Feature

  • Single Pole Relay designed with medium current load 3A
  • 2.54mm terminal pitch employment equivalent to I. C. terminal pitch.
  • Single or double common terminal available.
  • Comply with RoHS and REACH regulations

Application

elecommunication, Domestic Appliances, Office Machine, Audio Equipment, Camera, etc.

Datasheet Enquire
Telecommunication Relays : Goodsky

Goodsky AZ Relay

Load Type AZ (DM/LM) AZ (D/L)
Rated Load (Resistive) 1A 120VAC
1A 24VDC 		1A 120VAC
1A 24VDC
Rated Carrying Current 1A 1A
Max. Allowable Voltage AC 120V
DC 60V 		AC 120V
DC 60V
Max. Allowable Current 1A 1A
Max. Allowable Power Force 120VA
24W 		120VA
24W
Min. Switching Load DC 1V, 1mA DC 1V, 1mA
Contact Material Ag Alloy Ag Alloy
Contact Form SPST SPDT

Main Feature

  • High reliability in dry circuit condition.
  • 2.54mm terminal pitch employment equivalent to I-C-Terminal.
  • Two types of coil sensitivity for design flexibility.
  • IC compatibility due to its low power consumption.
  • Comply with RoHS and REACH regulations

Application

Telecommunication, Domestic Appliances, Office Machin Audio Equipment, etc

Datasheet Enquire
Telecommunication Relays : Goodsky

Goodsky GS Relay

Load Type GS (D) GS (L) GS (T)
Rated Load (Resistive) 1A 120VAC
2A 24VDC 		1A 120VAC
2A 24VDC 		1A 120VAC
2A 24VDC
Rated Carrying Current 2A 2A 2A
Max. Allowable Voltage AC 120V
DC 24V 		AC 120V
DC 24V 		AC 120V
DC 24V
Max. Allowable Current 2A 2A 2A
Max. Allowable Power Force 120VA
48W 		120VA
48W 		120VA
48W
Min. Switching Load DC 1V, 1mA DC 1V, 1mA DC 1V, 1mA
Contact Material Ag Alloy Ag Alloy Ag Alloy
Contact Form DPDT DPDT DPDT

Main Feature

  • Gold Silver alloy contact good for low switching application.
  • 2.54mm terminal pitch employment equivalent to l.c.Terminal.
  • Different types of coil sensitivity available to meet user's selection.
  • Plastic epoxy resin sealed type for washing procedure.
  • Comply with RoHS and REACH regulations

Application

Telecommunication, Domestic Appliances, Office Machine, Audio Equipment, Remote Control, etc

Datasheet Enquire
Telecommunication Relays : Goodsky

Goodsky DIR Relay

Load Type DIR/DID
Rated Load (Resistive) 0.5A 100VDC 0.2A 30VDC
Rated Carrying Current 0.5A 0.2A
Max. Allowable Voltage 100 VDC 30 VDC
Max. Allowable Current 0.5A 0.2A
Max. Allowable Power Force 10 VA 3 VA
Min. Switching Load DC 1V, 1mA DC 1V, 1mA
Contact Material Rh Alloy Rh Alloy
Contact Form SPST/DPST SPDT

Main Feature

  • Epoxy molded Dual-ln-Line package.
  • Low profile, mounting space compatible with DIP IC.
  • Completely washable.
  • Provide high speed, miniature and cost effective switching solution.
  • Comply with RoHS and REACH regulations

Application

Security System, Modem and Telecommunication Products

Datasheet Enquire
Telecommunication Relays : Goodsky

Goodsky SIR Relay

Load Type SIR/SID
Rated Load (Resistive) 0.5A 100VDC
Rated Carrying Current 0.5A
Max. Allowable Voltage 100 VDC
Max. Allowable Current 1A
Max. Allowable Power Force 10 VA
Min. Switching Load DC 1V, 1mA
Contact Material Rh Alloy
Contact Form SPST

Main Feature

  • Epoxy molded Single-ln-Line package.
  • Mounting space is less by half compared to Dual-ln-Line package.
  • Completely washable
  • Provide high speed, miniature and cost effective.
  • switching solution.s
  • Comply with RoHS and REACH regulations

Application

Security System, Modem and Telecommunication Products

Datasheet Enquire
Telecommunication Relays : Goodsky

Goodsky ST Relay

Load Type ST (D) ST (L) ST (T)
Rated Load (Resistive) 2A 120VAC
2A 24VDC 		2A 120VAC
2A 24VDC 		2A 120VAC
2A 24VDC
Rated Carrying Current 2A 2A 2A
Max. Allowable Voltage AC 120V
DC 60V 		AC 120V
DC 60V 		AC 120V
DC 60V
Max. Allowable Current 2A 2A 2A
Max. Allowable Power Force 240VA
48W 		240VA
48W 		240VA
48W
Min. Switching Load DC 5V, 1mA DC 5V, 1mA DC 5V, 1mA
Contact Material Ag +Au Ag +Au Ag +Au
Contact Form SPDT SPDT SPDT

Main Feature

  • Miniature size with lightweight.
  • Low power consumption with various types of coil sensitivity for design flexibility.
  • Plastic sealed type available for washing protective
  • Wide operation coil voltage range.
  • Comply with RoHS and REACH regulations

Application

Telecommunication, Office Equipment and Industrial Control Application

Datasheet Enquire

Key Features of Goodsky Telecom Relays

Reliable signal switching performance

Compact and space-saving relay design

Suitable for telecommunication applications

Suitable for electronic control systems

Good contact reliability

Electrical isolation between control and load circuits

Applications

Telecommunication equipment

Communication control systems

Signal switching circuits

Electronic control panels

Modem and communication equipment

Network and interface equipment

WHY CHOOSE US

Why Buy Goodsky Relays from Kura Electronics & Electricals, Pune?

Kura Electronics & Electricals, Pune supplies Goodsky Telecommunication Relays for industrial and electronic applications with product selection based on required relay specifications and application requirements.

Get in Touch

Authorised
Goodsky Dealer

Genuine Goodsky
relay products

Pune,
Maharashtra, India
supply

Support for OEM
and industrial requirements

Multiple relay
configurations

Suitable for bulk
and project requirements

FAQs

Goodsky Telecommunication Relays – FAQs

01What are Goodsky telecommunication relays used for?

They switch low-level signals in telecom equipment, modems, security systems, office machines, audio equipment and PCB control circuits.

02Which Goodsky telecom relay should I choose?

Choose UA for 3A loads, GS or AZ for low-level signals, DIR or SIR for compact boards, and ST for miniature low-power designs.

03What is the difference between DIR and SIR relays?

DIR uses a dual-in-line package, while SIR uses a single-in-line package that needs about half the mounting space.

04Are Goodsky telecom relays suitable for PCB mounting?

Yes. Most series use 2.54 mm IC pitch for direct PCB mounting, and the GS, DIR, SIR and ST series are sealed for washing.

05Where can I buy Goodsky telecom relays in Pune?

From Kura Electronics & Electricals, an authorised Goodsky dealer in Shukrawar Peth, Pune, with supply across India.
