Goodsky Home Appliancation Relays – Authorised Dealer in Pune

Industrial controlLightingEnergy managementMedical equipment
Request a quote

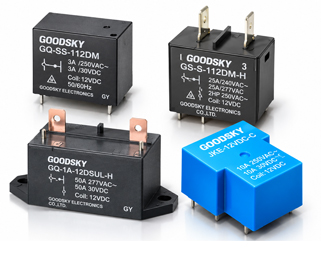

Home Application Relays : Goodsky

Goodsky Relays for Refrigerators, Washing Machines & ACs

Kura Electronics is an expert resupplier of electronic components, including relays. Since our inception,we have been dedicated to delivering high quality products to our valued customers. Our commitment to quality is persistant and our adept team stands ready to supply innovative solutions customized to respective demands. Leveraging our extensive expertise, we specialize in personalized approaches to cater to unique requisites of our esteemed cutomers.

What Are Home Appliance Relays?

Home appliances relays are electromagnetic switches that play an important role in controlling various functions within household appliances. These relays are designed to handle the switching of electronic currents and voltages that are typically encountered in domestic appliances, ensuring safe and efficient operation. They are used to control functions such as turning devices on and off, regulating temperature, managing power flow and enabling communication between different components of the appliance. These relays ensure the safe and efficient operation of household appliances by isolating control circuits from higher voltage,preventing damage and hazards. They are an integral part of modern appliances, contributing to their functionality, reliability and user safety.

Goodsky Home Appliance Relay Models & Specifications

Goodsky Home Application Relays
GQ
Load Type GQ (LM) GQ (LM1)
Rated Load (Resistive) 5A 250VAC

5A 30VDC 		10A 250VAC
12A 120VAC
10A 30VDC
Contact Capacity - TV-5 120VAC
Rated Carrying Current 5A 10A
Max. Allowable Voltage AC 250V
DC 30V 		AC 250V
DC 30V
Max. Allowable Current 5A 12A
Max. Allowable Power Force 1,250VA
300W 		2,500VA
300W
Contact Material Ag Alloy Ag Alloy
Contact Form SPST SPST

Main Feature

  • The contact form construction is 1a (SPST).
  • Miniature size with high sensitive type 200mW, high contact reliability with sealed type.
  • The Surge Strength of GQ Series is 10,000V.
  • he selection of plastic insulation material is designed for high temperature and provides better chemical solution performance.
  • Halogen Free series is available.

Application

Domestic Appliances, Office Machines, Audio Equipment, etc.

Datasheet Enquire
Goodsky Home Application Relays
GI
Load Type GI (DM)
Rated Load (Resistive) TUV: 25A 277VAC
UL: 23A 277VAC
Rated Carrying Current 25A
Max. Allowable Voltage AC 277V
Max. Allowable Current 25A
Max. Allowable Power Force 6,925VA
Contact Material Ag Alloy
Contact Form SPST

Main Feature

  • Switching current up to 25A
  • P.C.Board & Plug-in Terminal available.
  • Employment of suitable plastic materials to be applied to high temperature and various chemical solutions.
  • Halogen Free series available.
  • UL Class F insulation available
  • Comply with RoHS and REACH regulations.

Applications of Home Appliance Relays

Domestic and Industrial Appliances, General Control etc.

Datasheet Enquire
Goodsky Home Application Relays
GL
Load Type GL-1P (DM/AM) GL-2P (DM/AM)
Rated Load (Resistive) 30A 250VAC
30A 277VAC 		25A 250VAC
25A 277VAC
Rated Carrying Current 30A 25A
Max. Allowable Voltage AC 277V AC 277V
Max. Allowable Current 30A 30A
Max. Allowable Power Force 8,300VA 6,900VA
Contact Material Ag Alloy Ag Alloy
Contact Form SPST DPST

Main Feature

  • High switching current at 30A (1 Pole) and 25A (2 Poles).
  • Plug-in terminal is available.
  • Both AC and DC coil available
  • High Dielectric Strength 4,000VAC
  • Comply with RoHS and REACH regulations

Application

Home Appliance, Air Conditioner, Audio Equipment, Domestic Appliances, Controlling Equipment…et

Datasheet Enquire
Goodsky Home Application Relays
GU
Load Type GU (DM) GU (DB) GU (D) GU (D1)
Rated Load (Resistive) 30A 120VAC
30A 240VAC
30A 30VDC
- 		10A 240VAC
10A 30VDC
-
- 		NC: 20A 240VAC
10A 30VDC
NO: 30A 240VAC
20A 30VDC 		NC: 10A 240VAC
10A 30VDC
NO: 20A 240VAC
20A 30VDC
Contact Capacity NO: TV-8 120VAC
1-1/2HP 240VAC
NC: - 		NO: -
NC: 1/2HP 240VAC 		NO: TV-8 120VAC
NO: 1-1/2HP 240VAC
NC: 1/2HP 240VAC 		NO: TV-8 120VAC
NO: 1-1/2HP 240VAC
NC: 1/2HP 240VAC
Rated Carrying Current 30A 10A 30A 20A
Max. Allowable Voltage AC 240V AC 240V AC 240V AC 240V
Max. Allowable Current 30A 10A 30A 20A
Max. Allowable Power Force 7,200VA
900W 		2,400VA
300W 		7,200VA
600W 		4,800VA
600W
Contact Material Ag Alloy Ag Alloy Ag Alloy Ag Alloy
Contact Form SPST SPST SPDT SPDT

Main Feature

  • Single contact Form (SPST) series Relay offers switching capacity 30A in small size.
  • Dust cover, sealed & unclosed cover types are available.
  • UL Class F insulation available.
  • Halogen Free series available.
  • Comply with RoHS and REACH regulations

Application

Domestic Appliances, Heating, Ventilating and Conditioning System, Car Control Switching Box, General Power Switching Applications.

Datasheet Enquire
Goodsky Home Application Relays
GU (QUICK CONTACT TAB)
Load Type GU (DM) GU (DB) GU (D) GU (D1)
Rated Load (Resistive) 30A 120VAC
30A 240VAC
30A 30VDC
- 		10A 240VAC
10A 30VDC
-
- 		NC: 20A 240VAC
10A 30VDC
NO: 30A 240VAC
20A 30VDC 		NC: 10A 240VAC
10A 30VDC
NO: 20A 240VAC
20A 30VDC
Contact Capacity NO: TV-8 120VAC
1-1/2HP 240VAC
NC: - 		NO: -
NC: 1/2HP 240VAC 		NO: TV-8 120VAC
1-1/2HP 240VAC
NC: 1/2HP 240VAC 		NO: TV-8 120VAC
1-1/2HP 240VAC
NC: 1/2HP 240VAC
Rated Carrying Current 30A 10A 30A 20A
Max. Allowable Voltage AC 240V AC 240V AC 240V AC 240V
Max. Allowable Current 30A 10A 30A 20A
Max. Allowable Power Force 7,200VA
900W 		2,400VA
300W 		7,200VA
600W 		4,800VA
600W
Contact Material Ag Alloy Ag Alloy Ag Alloy Ag Alloy
Contact Form SPST SPST SPDT SPDT

Main Feature

  • GU Single contact Form (SPST) series Relay offers switching capacity by 30A in small size for various kinds of applications.
  • PC Board mounting & Quick Connect Terminals available.
  • Flanged Cover can be fixed by screw or by snap-in mounting track
  • UL Class F insulation available.
  • Comply with RoHS and REACH regulations

Application

Domestic Appliances, Heating, Ventilating and Conditioning System, Car Control Switching Box, General Power Switching Applications

Datasheet Enquire
Goodsky Home Application Relays
MRE
Load Type MRE (DM/DB) MRE (D)
Rated Load (Resistive) 5A 120VAC
5A 24VDC 		5A 120VAC
5A 24VDC
Rated Carrying Current 5A 5A
Max. Allowable Voltage AC 120V
DC 60V 		AC 120V
DC 60V
Max. Allowable Current 5A 5A
Max. Allowable Power Force 600VA
100W 		600VA
100W
Contact Material Ag Alloy Ag Alloy
Contact Form DPST DPDT

35°C Max. (L Type)

Main Feature

  • Power Relay in miniature size up to 5A/120VAC capacity.
  • Two poles are designed with Plug-in Terminal for customer's various applications.
  • Complete protective construction is designed for dust prevention.
  • Comply with RoHS and REACH regulations

Application

Office Equipment, Industrial Control Equipment…etc.

Datasheet Enquire
Home appliances relays are commonly found in a wide range of household devices such as

Refrigerators and Freezers

Relays are used to control compressors, defrost cycles and cooling systems.

Washing Machines and Dryers

Relays help manage motor functions, water valves and heating elements.

Microwave Ovens

Relays control the magnetron, turntable motor, and other components.

Air Conditioners

Relays regulate the compressor, fan motors and thermostat functions.

Toaster Ovens and Electric Grills

Relays manage heating elements and temperature settings.

Home appliance relays offer several advantages that contribute to the proper functioning, safety and efficiency of household devices and systems.

  • Electronic Isolation : These relays provide a barrier between the control circuit and the higher voltage. This isolation helps prevent damage to sensitive control components and enhances overall safety for users.

  • Control : Precise control over various functions in appliances is possible due to use of these type of relays. They can be used to automate processes such as turning devices on and off at specific times.

  • Overload Protection : Home appliance relays can be designed to incorporate overload protection mechanisms. They can detect excessive current flow and disconnect the circuit to prevent damage to the appliance.

  • Voltage Control : These parts allow control of devices that operate on different voltage levels. They can switch high voltage using a lower voltage control signal.

  • Versatility : These types are available in various types and configurations, making them adaptable to a wide range of applications and appliances, from small home devices to larger systems.

  • Temperature Regulation : These relays can be used to control heating elements in appliances like ovens and water heaters, ensuring accurate temperature regulation.

  • Reliability : Well designed relays are known for their reliability and durability, contributing to the longevity of appliances and reducing maintenance requirements.

  • Energy Efficiency : By controlling when devices operate and optimizing power usage, relays can contribute to energy savings and increased efficiency in household appliances.

FAQ

Goodsky Home Appliance Relays – FAQ

01What current ratings do Goodsky home appliance relays have?

From 5A to 30A: MRE is 5A, GQ 5A to 10A, GI 25A, and GL and GU go up to 30A.

02Which relay is best for air conditioners?

The 30A GL and GU relays are used in air conditioners and HVAC systems, and the 25A GI suits heavy appliance loads.

03Which appliances use these relays?

Refrigerators, washing machines, microwave ovens, air conditioners, toaster ovens and electric grills.

04Are plug-in and quick connect types available?

Yes. GI, GL and MRE come with plug-in terminals, and the GU Quick Contact Tab relay has quick connect terminals.

05Where can I buy Goodsky home appliance relays in Pune?

From Kura Electronics & Electricals, an authorised Goodsky dealer in Shukrawar Peth, Pune, with supply across India.

Need a Goodsky relay price?

Send the model, coil voltage and quantity, and we will reply with price and availability.
