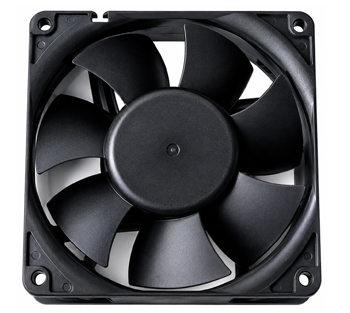

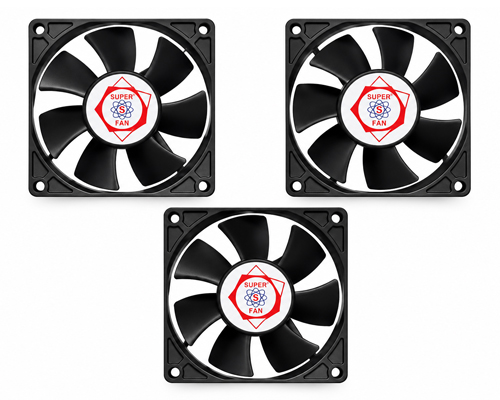

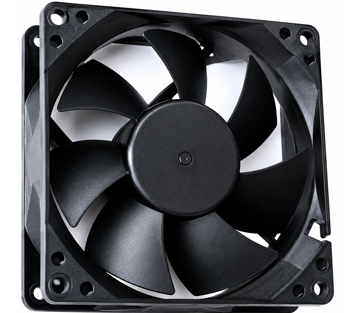

DC FAN series — 80mm and 120mm frames, 12V, 24V and 48V
We offer our clients with DC Instrument Cooling Fans which are being procured from the leading manufacturers. These DC instrument cooling fans are being stringently tested on various parameters before being supplied to the clients.
| Housing | Plastic P.B.T. |
|---|---|
| Blade | Plastic P.B.T |
| Insulation Resistance | 10MΩ at 500VDC between lead and frame |
| Dielectric Strength | 1 min at 500VAC / 50-60HZ, current 5mA |
| Operation Temperature | -15º C ~ 75º C |
| Operation Humidity | 20% ~ 85% |
| Working Voltage | Rated Voltage ± 15% |
| Life at 25ºC | Ball bearing 60,000hr, sleeve bearing 30,000hr |
S: Sleeve Bearing · B: Ball Bearing
| Bearing Style | S (sleeve bearing) |
|---|---|
| Voltage VDC | 12 |
| Current AMPS | 0.20 |
| I/P Watts | 2.40 |
| Speed RPM | 3200 |
| Air Flow CFM | 40.3 |
| Air Pressure mmH2O | 5.0 |
| Noise DbA | 37 |
| Weight | 75 g |
| Bearing Style | S (sleeve bearing) |
|---|---|
| Voltage VDC | 12 |
| Current AMPS | 0.46 |
| I/P Watts | 5.52 |
| Speed RPM | 2500 |
| Air Flow CFM | 100 |
| Air Pressure mmH2O | 6.0 |
| Noise DbA | 43.3 |
| Weight | 160 g |
| Bearing Style | S (sleeve bearing) |
|---|---|
| Voltage VDC | 24 |
| Current AMPS | 0.28 |
| I/P Watts | 6.72 |
| Speed RPM | 2500 |
| Air Flow CFM | 100 |
| Air Pressure mmH2O | 6.0 |
| Noise DbA | 43.3 |
| Weight | 160 g |
| Bearing Style | S (sleeve bearing) |
|---|---|
| Voltage VDC | 48 |
| Current AMPS | 0.27 |
| I/P Watts | 12.96 |
| Speed RPM | 2900 |
| Air Flow CFM | 132.5 |
| Air Pressure mmH2O | 8.4 |
| Noise DbA | 45.8 |
| Weight | 230 g |
For converting the figures above into other units.
| CFM | m³/sec | m³/min | ft³/sec |
|---|---|---|---|
| 2118 | 1 | 60 | 35.31 |
| 35.31 | 0.01666 | 1 | 0.5885 |
| 60 | 0.02832 | 1.69833 | 1 |
| 1 | 0.00047 | 0.02832 | 0.01666 |
| mmH₂O | inH₂O | Pa = N/m | afm |
|---|---|---|---|
| 1 | 0.03939 | 9.80665 | 0.00009 |
| 25.4 | 1 | 249 | 0.00246 |
| 0.10197 | 0.0040 | 1 | 0.00001 |
| 10332 | 407.1 | 101325 | 1 |
FAQs
We supply DC instrument cooling fans in 80mm and 120mm sizes for panels and electronic equipment.
Our DC fans are available in 12V, 24V and 48V versions and work within ±15% of the rated voltage.
Ball bearing fans last about 60,000 hours, while sleeve bearing fans last about 30,000 hours at 25°C.
These fans operate from −15°C to 75°C and 20% to 85% humidity, with PBT plastic housing.
Kura Electronics supplies DC cooling fans from Shukrawar Peth, Pune, and delivers across India.
Send the fan size, voltage and quantity, and we will reply with price and availability.
